| Brand Name: | Qunhe Mould |

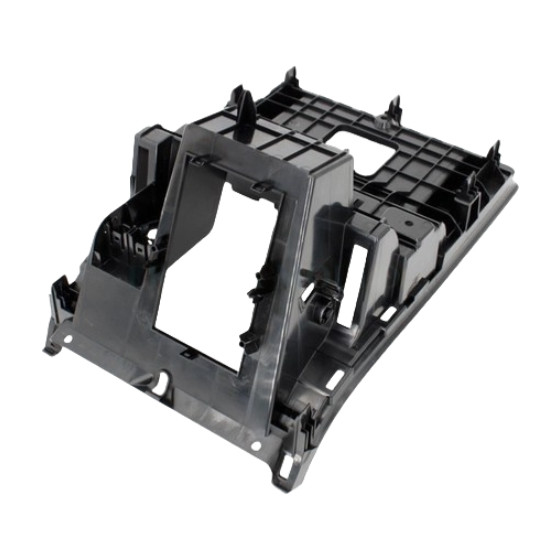

| Model Number: | Plastic Auto Parts Mould |
| MOQ: | 1 set |
| Price: | Negotiable |
| Delivery Time: | 30-60 days |
| Payment Terms: | T/T, D/A, D/P, L/C, Western Union, MoneyGram |
Part 1: Mould Making Process
| 1 | Quotation | Need 2D/3D drawing or Samples |
| 2 | Mould Design | Mould design drawing could be sent for confirmation in one week after receiving the down payment |
| 3 | Mould Making | Start mould manufacturing only after the mould design is confirmed by customers |
| 4 | Mould Trial | 1st shot samples will be available for checking |
| 5 | Sample Confirmation | Customer to check and confirm samples |
| 6 | 2nd Payment | Customer need to pay for the 2nd payment once received the T1 shot samples |
| 7 | Mould Modification | Modify the mould if necessary |
| 8 | Mould Delivery | To deliver the mould after received the 3rd payment |
| 9 | After-Sales Service | Free of charge for 12 months warranty |
| 10 | Unpaid Balance | Customer need to pay for the balance after molds having been shipped out two months |
Part 2: Detailed Information
| Mold Description | |
| Mold Type | Plastic injection mold, overmolding, Interchangeable Mold, insert molding, compression mold, stamping, die casting mold, etc |
| Design software | UG, PROE, Auto CAD, Solidworks, etc. |
| Main services | Prototypes, mold design, mold making, mold testing, low volume/high volume plastic production |
| Certificate | ISO9001: 2015; IATF16949: 2016 |
| Steel material | 718H, P20, NAK80, S316H, SKD61, etc |
| Plastic production Raw material | PP, Pa6, PLA, ABS, PE, PC, POM, PVC, PET, PS, TPE/TPR, etc |
| Mold base | HASCO, DME, LKM, etc |
| Mold runner | Cold runner and hot runner |
| Mold hot runner | DME, HASCO, YUDO, etc |
| Mold cold runner | Point way, side way, follow way, direct gate way, etc |
| Mold standard parts | DME, HASCO, etc |
| Mold life | >100,000 shots |
| Mold hot treatment | Quencher, nitridation, tempering, etc |
| Mold cooling system | Water cooling or Beryllium bronze cooling, etc |
| Mold surface | EDM, texture, high gloss polishing |
| Hardness of the steel | 20~60 HRC |
| Equipments | High speed CNC, standard CNC, EDM, Wire cutting, Grinder, Lathe, Milling machine, plastic injection machine |
| Lead time | 35~55 working days |
| Month Production | 50 sets per month |
| Mold Packing | Standard exporting wooden case with steel frame |
Part 3: Mould Material Feature
| Steel Grade | Characteristics | Applications |
| S136 |
High purity, high polish ability to mirror finish, with good corrosion resistance and low distortion after heat treatment |
High quality mould insets with mirror surface finish and good corrosion resistance, best suitable for plastic tooling of PVC, PP, PE, PC, machine parts for food processing machinery |
| NAK 80 |
High hardness, good polish ability, excellent photo etching ability, good EDM machining and weld ability |
Moulds require high wear resistance and excellent surface finishing |
| 718H | High purity |
High quality mould inserts, best suitable for tooling of PS, PE, PP, ABS |
| 2316 | High corrosion resistance | High corrosion resistance moulds with good polish |
| P20 | Good polish ability | Suitable for moulds require good surface polishing |
| 2312 | Excellent machine ability | Plastic mould for general use and core parts |
Part 4: Why Choose Us?
Our Adavantage:
1. We can offer plastic mold, injection mold, plastic injection mold with all kinds of plastic material.
2. Auto parts mould, medical equipment mould, household appliances mould, electronic product mould, double color mould and so on.
3. We can also offer rapid prototype with plastic materials and various surface treatments.
4. We can help you no matter you need small or large quantity.
5. Our products are with high quality, competitive price and fast delivery time.
6. We focus on 2 shot parts mold making and production, painting, thin wall and high precision parts mold making and production.
Our Service:
1. 2D & 3D mold design (CAD, UG, Solidworks, ProE, etc, 2D drawing: DXF, DWG, PDF file, 3D model: IGS,PRT,X-T, e-drawing for free.)
2. Mold flow analysis report
3. Weekly report for progress.
4. ISIR (Sample Inspection Report)
5. Mold trial, process sheet
6. Pilot production
7. Mass production
8. Assembly
9. Second operation such as oil spout, silk screen, pad printing and assembling
10. Packing & Delivery arrangement
